Shimano C2 Flat Mount Caliper Bolt 20/25/30mm

- Squarebox Cycles is an Official Dealer for Shimano in Singapore.
- Your Shimano purchases with us are guaranteed to be genuine and covered by local warranty (Terms & Conditions apply).
- Installation service available in-store (installation fees apply).

Description

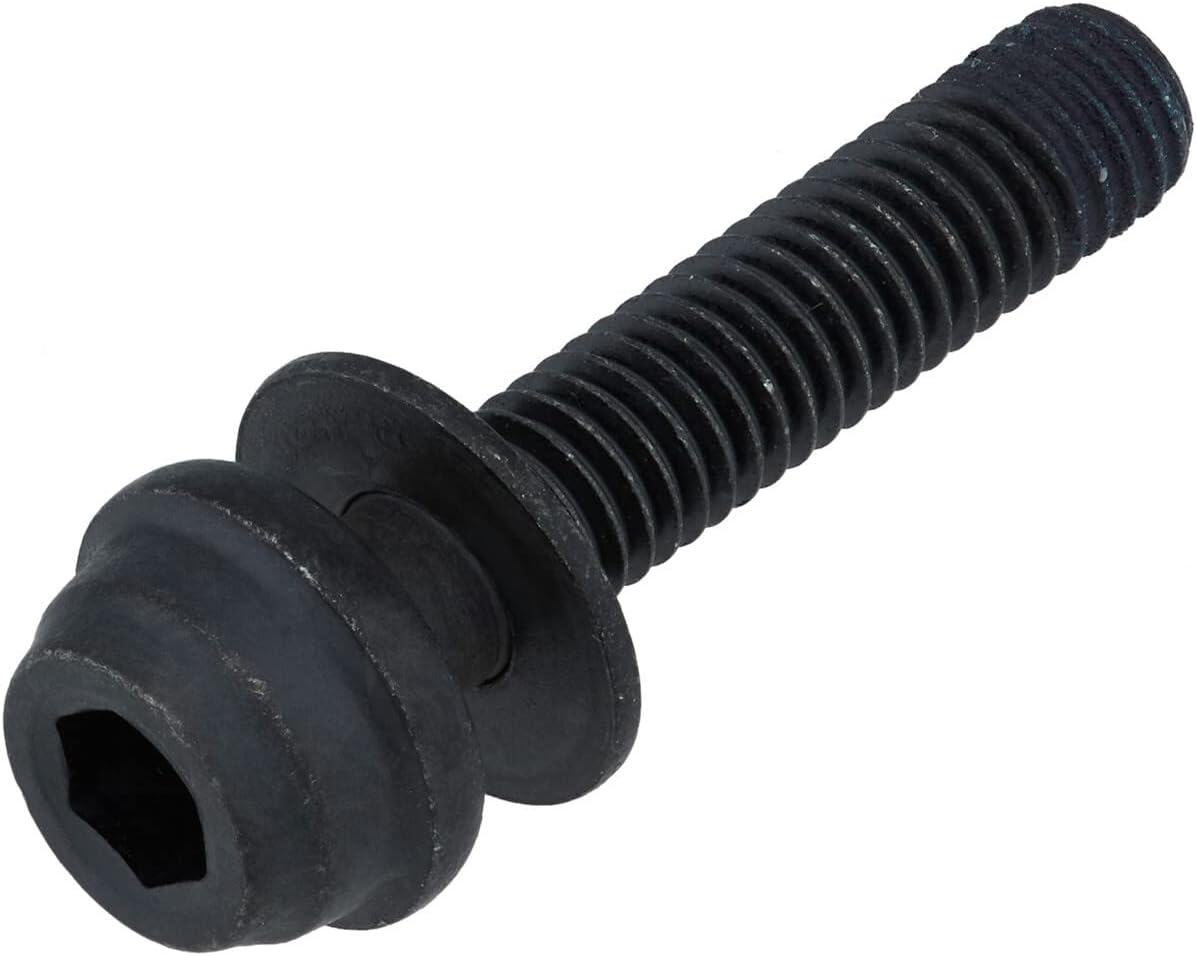

The Shimano C2 Flat Mount Caliper Fixing Bolt is a genuine replacement mounting bolt for compatible Shimano Flat Mount hydraulic disc brake calipers.

Available in different lengths to accommodate different rear frame mounting thicknesses. Selecting the correct bolt is important for safe and secure brake caliper installation.

These C2 bolts are compatible with Shimano Flat Mount brake calipers including Dura-Ace BR-R9270, Ultegra BR-R8170 and 105 BR-R7170. Compatibility also extends to selected other Shimano Flat Mount calipers.

Please select the bolt according to the required frame mounting thickness. Shimano specifies a tightening torque of 6–8 Nm for these C2 fixing bolts.

Specifications

- Product: C2 Flat Mount Brake Caliper Fixing Bolt
- Material: Steel
- Thread: M5
- Size: 20mm / 25mm / 30mm
- Tool: 4mm Hex Key
- Tightening Torque: 6–8 Nm
- Compatibility: Shimano BR-R9270 / BR-R8170 / BR-R7170 and compatible Shimano Flat Mount brake calipers
- Application: Rear Flat Mount Disc Brake Caliper Installation
- Colour: Black

Variants

- 20mm Frame Thickness
- 25mm Frame Thickness
- 30mm Frame Thickness
