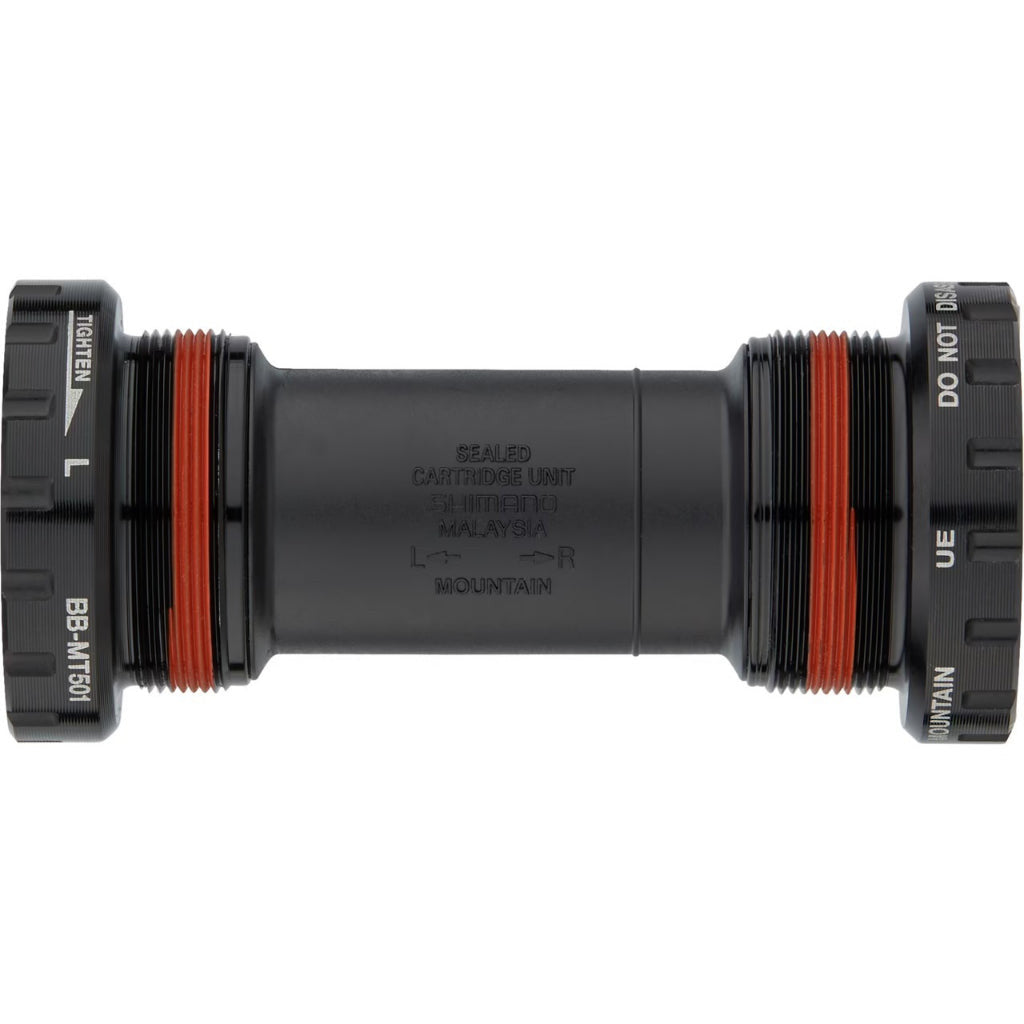

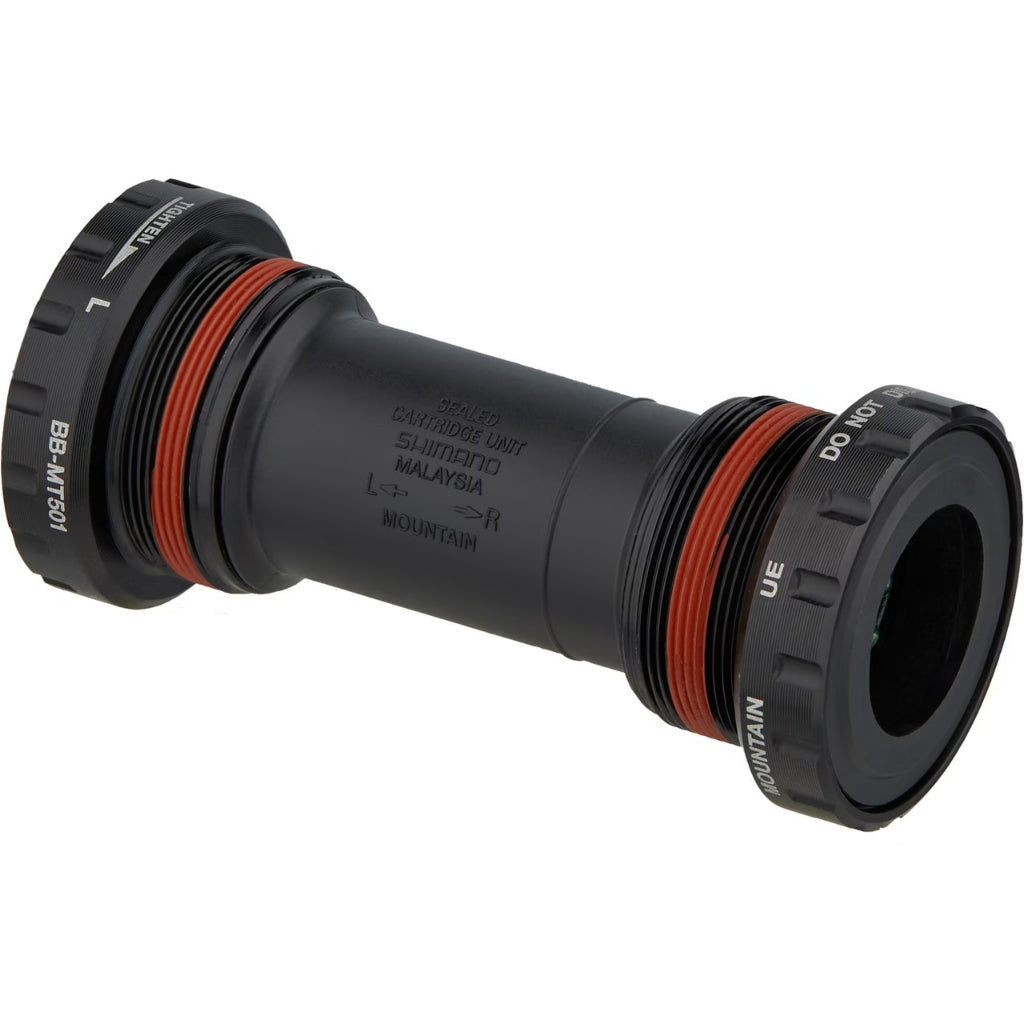

Shimano Deore BB-MT501 Bottom Bracket BSA

Squarebox Cycle is an Official Dealer for Shimano in Singapore.
Your Shimano purchases with us are guaranteed to be genuine and covered by local warranty (Terms & Conditions apply).
Installation service available in-store (installation fees apply).

Model: BB-MT501
Series: Deore
Type: BSA threaded bottom bracket
Application: All Mountain, Cross Country, City, Touring
Shell Width: 68 mm / 73 mm
Axle Diameter: 24 mm (Hollowtech II)
Bearings: Steel
Bottom Bracket Cup Material: Anodised aluminium
Centre Tube Material: Composite resin
Technology/Design Features: Improved seal design for extended durability, Hollowtech II for high stability and efficiency, anodised bearing cups, high rotational efficiency
Compatibility: Recommended for Deore FC-M6100, FC-M6120, FC-M6130, FC-M5100, FC-M6000, FC-M4100, FC-M617; FC-MT610, FC-MT510, FC-MT511, FC-MT512, FC-MT500, FC-M627, FC-MT210, FC-MT200; ZEE FC-M640, FC-M645; CUES FC-U4010, FC-U6000, FC-U6010; Deore FC-T6010; Alivio FC-T4060, FC-T551

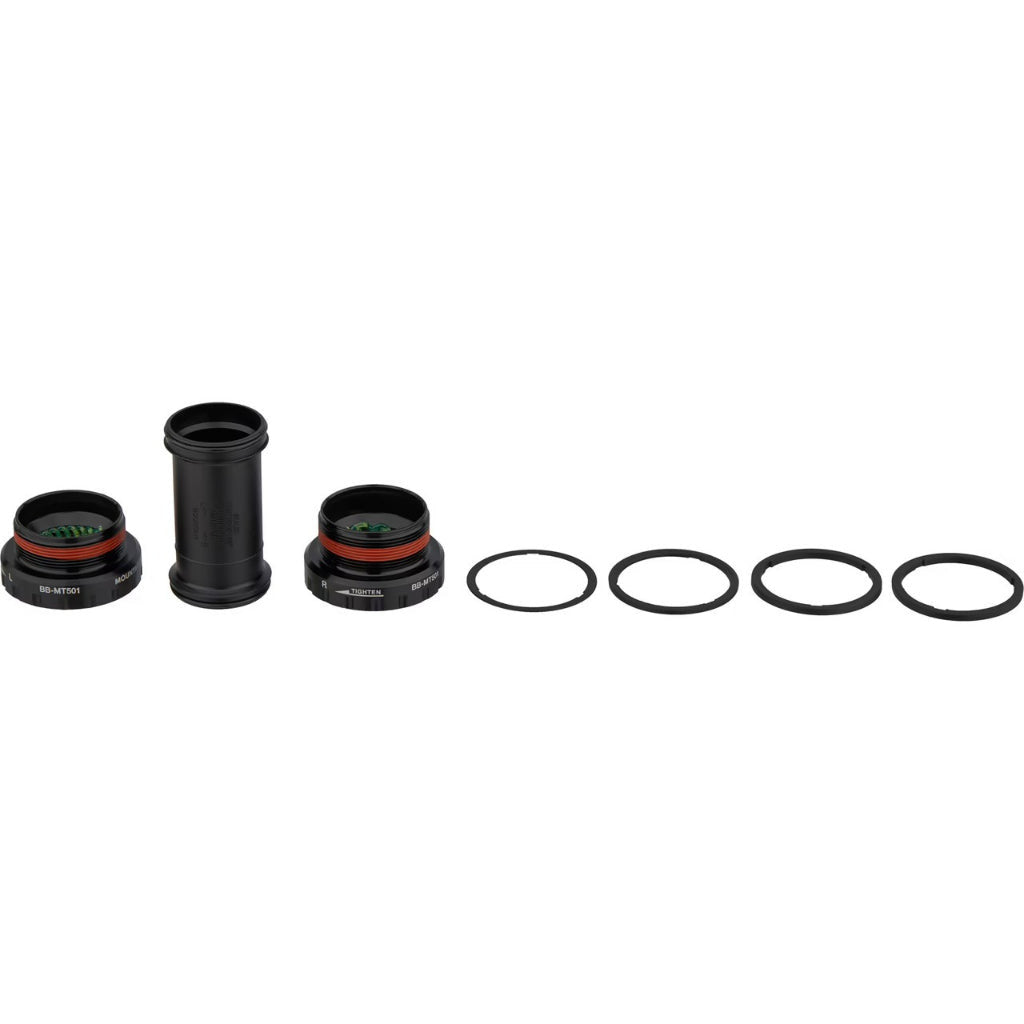

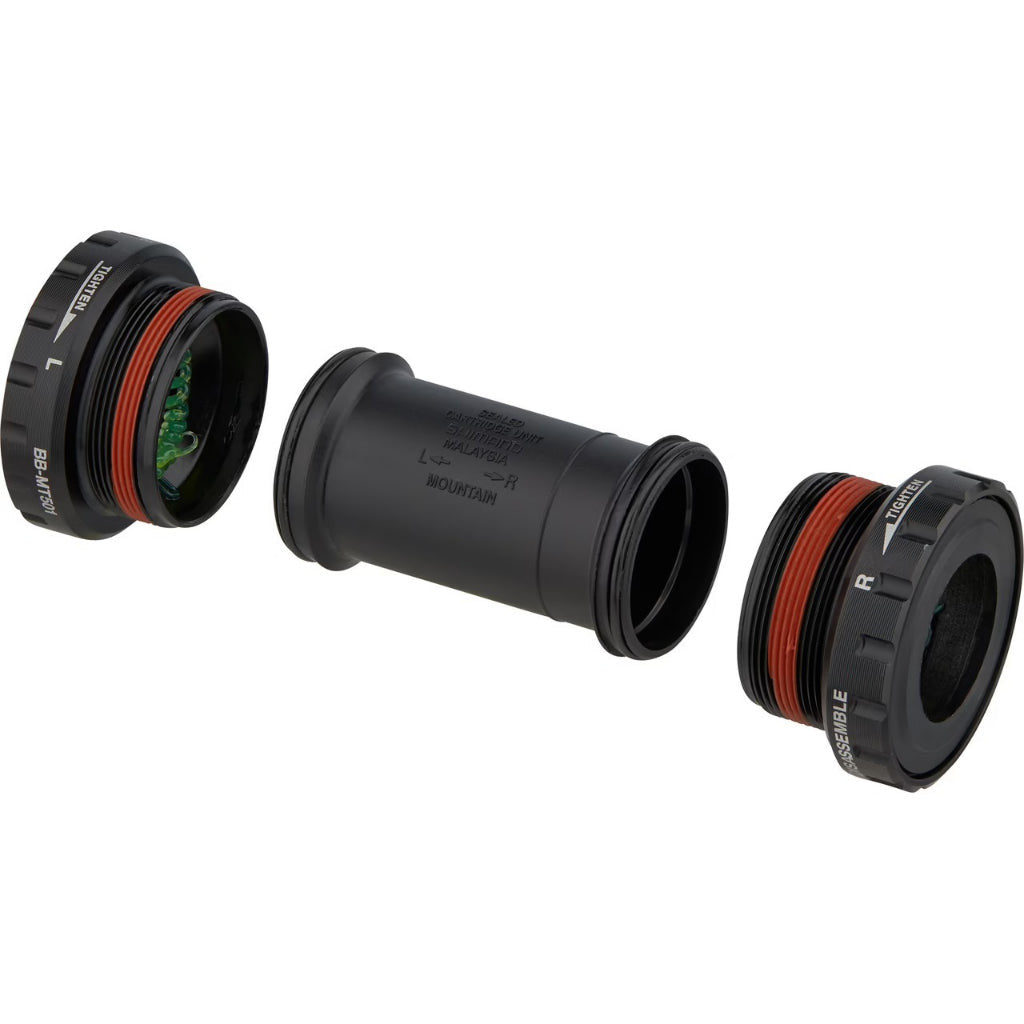

Contents: Right bearing cup with bearings, left bearing cup with bearings, bottom bracket centre sleeve, two 2.5 mm spacers, one 1.8 mm spacer, one 0.7 mm spacer
